SS5 CrossLink 4-Pod LED Light Bar (one)

$ 1,379.93 CAD

Diode Dynamics | SKU / Part Number: DD6794 | Barcode: 00691025935158

Choose Your Optic and Color

White Combo Yellow Combo White Driving Yellow Driving

Choose Your Power Level

Sport Pro

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Description

The Diode Dynamics SS5 Sport Universal CrossLink 4-Pod Lightbar White Combo offers a performance-driven upgrade for your vehicle's lighting. Using our patent-pending CrossLink technology this kit links four SS5 LED pods together into a single lightbar. Featuring the highest output intensity of any 5-inch LED pod on the market. Designed with attention to detail, it provides: Advanced TIR optics provide high efficiency and focus; High-intensity automotive-type LEDs; Pin-fin heatsink design; Integrated Deutsch-style connector; Durable powdercoated aluminum construction. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications

Product Currently Selected

SS5 Sport Universal CrossLink 4-Pod Lightbar White Combo, DD6794
SS5 Pro Universal CrossLink 4-Pod Lightbar White Combo, DD7240
SS5 Sport Universal CrossLink 4-Pod Lightbar Yellow Combo, DD6795
SS5 Pro Universal CrossLink 4-Pod Lightbar Yellow Combo, DD7241
SS5 Sport Universal CrossLink 4-Pod Lightbar White Driving, DD7206
SS5 Pro Universal CrossLink 4-Pod Lightbar White Driving, DD7252
SS5 Sport Universal CrossLink 4-Pod Lightbar Yellow Driving, DD7207
SS5 Pro Universal CrossLink 4-Pod Lightbar Yellow Driving, DD7253
Features and Benefits

Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction

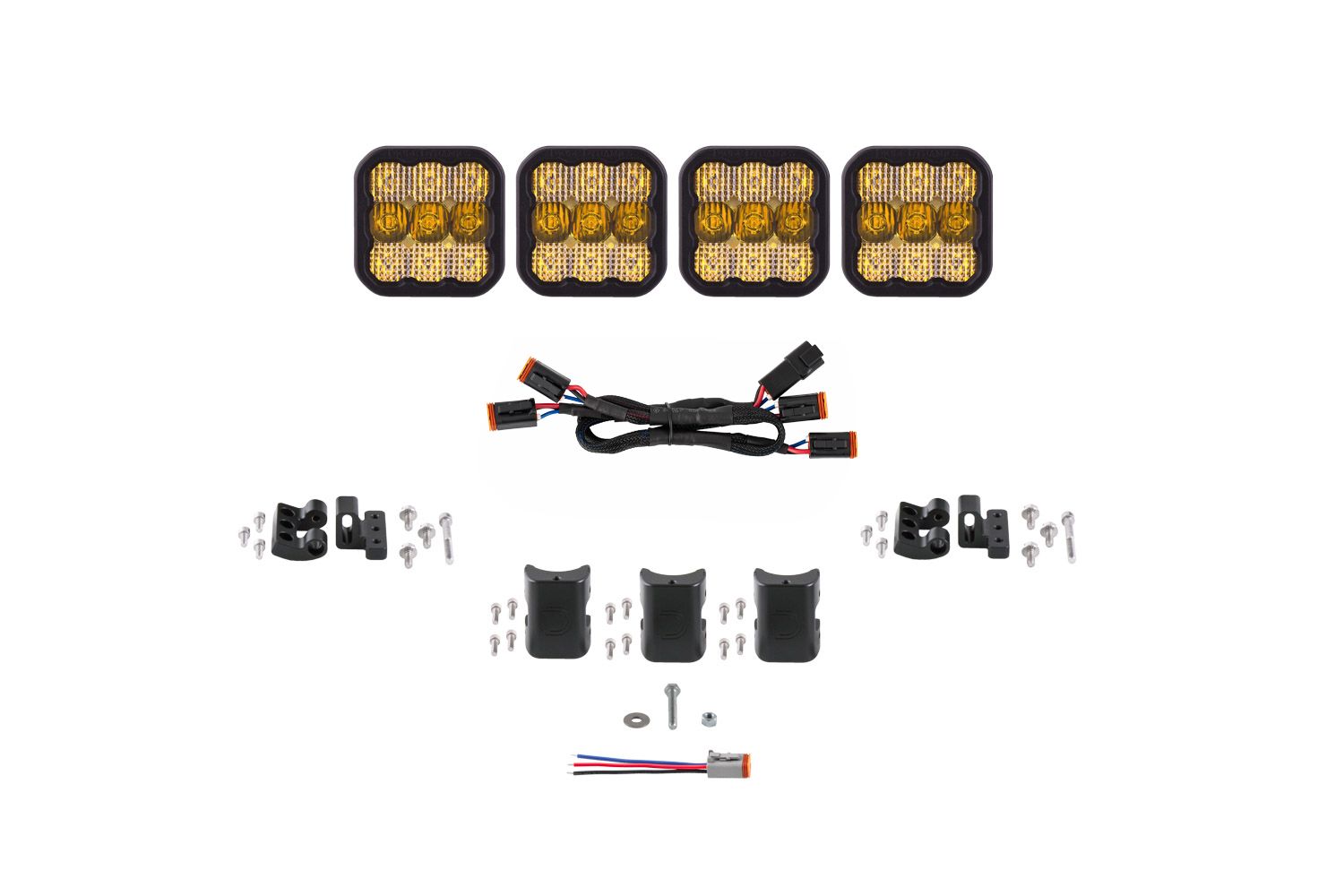

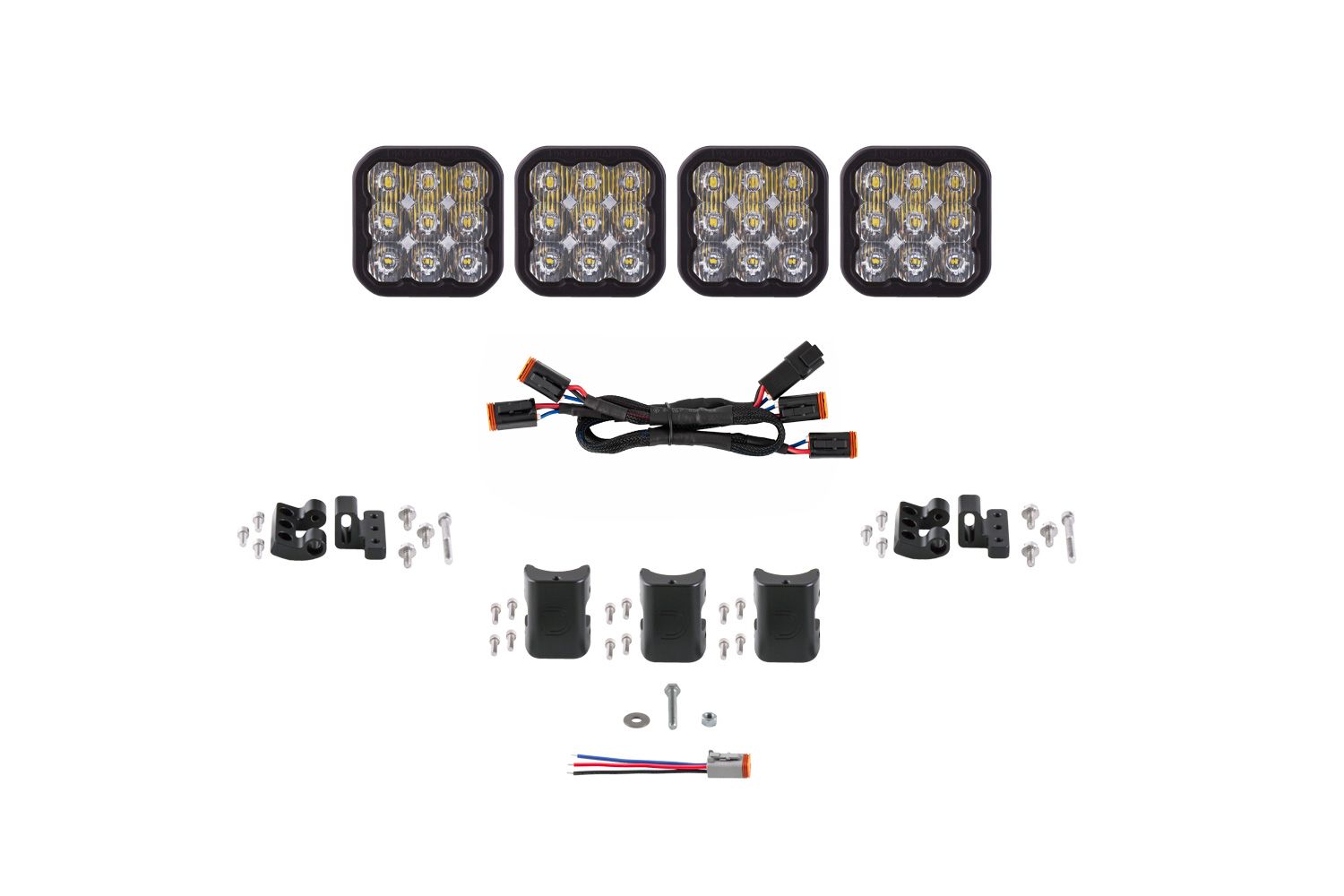

Whats Included

Included in the box:
- Four (4) Stage Series 5inch LED Pods
- Three (3) CrossLinks with hardware
- One (1) CrossLink endmount kit
- One (1) DT 4-Pod connecting harness
- One (1) Deutsch-style wire pigtail
Included in the box:
- Four (4) Stage Series 5inch LED Pods
- Three (3) CrossLinks with hardware
- One (1) CrossLink endmount kit
- One (1) DT 4-Pod connecting harness
- One (1) Deutsch-style wire pigtail
Included in the box:
- Four (4) Stage Series 5inch LED Pods
- Three (3) CrossLinks with hardware
- One (1) CrossLink endmount kit
- One (1) DT 4-Pod connecting harness
- One (1) Deutsch-style wire pigtail
Included in the box:
- Four (4) Stage Series 5inch LED Pods
- Three (3) CrossLinks with hardware
- One (1) CrossLink endmount kit
- One (1) DT 4-Pod connecting harness
- One (1) Deutsch-style wire pigtail
Included in the box:
- Four (4) Stage Series 5inch LED Pods
- Three (3) CrossLinks with hardware
- One (1) CrossLink endmount kit
- One (1) DT 4-Pod connecting harness
- One (1) Deutsch-style wire pigtail
Included in the box:
- Four (4) Stage Series 5inch LED Pods
- Three (3) CrossLinks with hardware
- One (1) CrossLink endmount kit
- One (1) DT 4-Pod connecting harness
- One (1) Deutsch-style wire pigtail
Included in the box:
- Four (4) Stage Series 5inch LED Pods
- Three (3) CrossLinks with hardware
- One (1) CrossLink endmount kit
- One (1) DT 4-Pod connecting harness
- One (1) Deutsch-style wire pigtail
Included in the box:
- Four (4) Stage Series 5inch LED Pods
- Three (3) CrossLinks with hardware
- One (1) CrossLink endmount kit
- One (1) DT 4-Pod connecting harness
- One (1) Deutsch-style wire pigtail
Tech Specs

Base Color: Black
Base Material: Steel
Beam Angle: Combo (Driving and Flood)
Bolt Thread Type: Medium
Color Temp: 6000K
Compliance Rating: SAE J581 Driving/Auxiliary High Beam Pattern
Drilling Required: No
Input Power (watts): Main Beam: 40 Backlight: 3.17
Intensity (lux): 81 600 cd
Intrusion Rating: IP69K Waterproof High Pressure
Measured Output (lumens): 3 700 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Universal Or Specific Fit: Universal
Base Color: Black
Base Material: Steel
Beam Angle: Combo (Driving and Flood)
Bolt Thread Type: Medium
Color Temp: 6000K
Compliance Rating: SAE J581 Driving/Auxiliary High Beam Pattern
Drilling Required: No
Input Power (watts): Main Beam: 90 Backlight: 3.17
Intensity (lux): 75 700 cd
Intrusion Rating: IP69K Waterproof High Pressure
Measured Output (lumens): 9 700 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Universal Or Specific Fit: Universal
Base Color: Black
Base Material: Steel
Beam Angle: Combo (Driving and Flood)
Bolt Thread Type: Medium
Color Temp: 3000K
Drilling Required: No
Input Power (watts): Main Beam: 40 Backlight: 3.07
Intensity (lux): 71 200 cd
Intrusion Rating: IP69K Waterproof High Pressure
Measured Output (lumens): 3 700 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Universal Or Specific Fit: Universal
Base Color: Black
Base Material: Steel
Beam Angle: Combo (Driving and Flood)
Bolt Thread Type: Medium
Color Temp: 3000K
Drilling Required: No
Input Power (watts): Main Beam: 90 Backlight: 3.07
Intensity (lux): 58 500 cd
Intrusion Rating: IP69K Waterproof High Pressure
Measured Output (lumens): 7 900 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Universal Or Specific Fit: Universal
Base Color: Black
Base Material: Steel
Beam Angle: Driving 20°x8°
Bolt Thread Type: Medium
Color Temp: 6000K
Compliance Rating: SAE J581 Driving/Auxiliary High Beam Pattern
Drilling Required: No
Input Power (watts): Main Beam: 40 Backlight: 3.17
Intensity (lux): 81 600 cd
Intrusion Rating: IP69K Waterproof High Pressure
Measured Output (lumens): 3 700 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Universal Or Specific Fit: Universal
Base Color: Black
Base Material: Steel
Beam Angle: Driving 20°x8°
Bolt Thread Type: Medium
Color Temp: 6000K
Compliance Rating: SAE J581 Driving/Auxiliary High Beam Pattern
Drilling Required: No
Input Power (watts): Main Beam: 90 Backlight: 3.17
Intensity (lux): 170 000 cd
Intrusion Rating: IP69K Waterproof High Pressure
Measured Output (lumens): 9 700 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Universal Or Specific Fit: Universal
Base Color: Black
Base Material: Steel
Beam Angle: Driving 20°x8°
Bolt Thread Type: Medium
Color Temp: 3000K
Drilling Required: No
Input Power (watts): Main Beam: 40 Backlight: 3.07
Intensity (lux): 103 000 cd
Intrusion Rating: IP69K Waterproof High Pressure
Measured Output (lumens): 3 700 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Universal Or Specific Fit: Universal
Base Color: Black
Base Material: Steel
Beam Angle: Driving 20°x8°
Bolt Thread Type: Medium
Color Temp: 3000K
Drilling Required: No
Input Power (watts): Main Beam: 90 Backlight: 3.07
Intensity (lux): 131 600 cd
Intrusion Rating: IP69K Waterproof High Pressure
Measured Output (lumens): 7 900 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Universal Or Specific Fit: Universal
