Elite LED Headlights for 2021-2023 Ford F-150

$ 1,987.14 CAD $ 2,207.93 CAD

Diode Dynamics | SKU / Part Number: DD5178 | Barcode: 00195995143907

Choose Your Kit

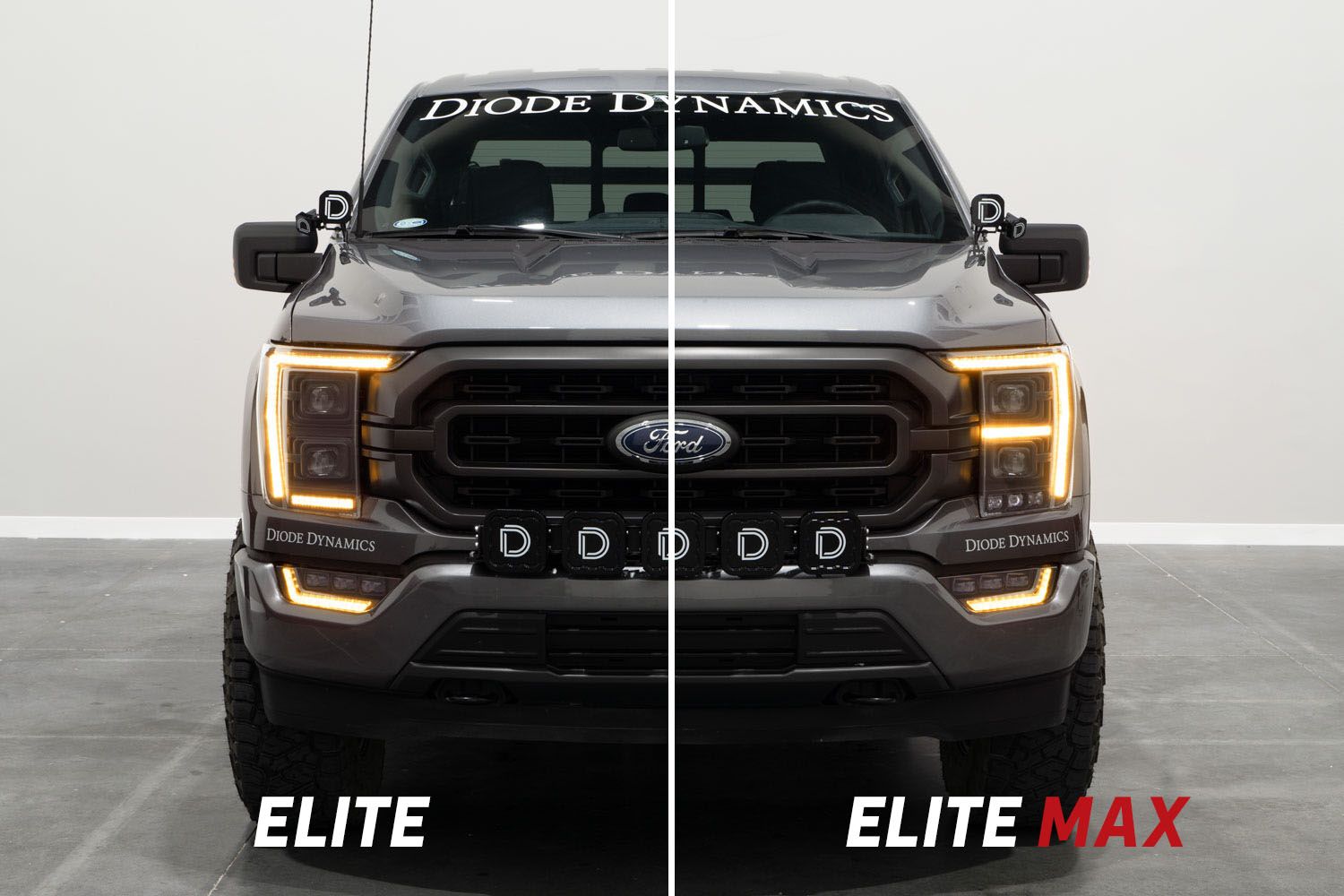

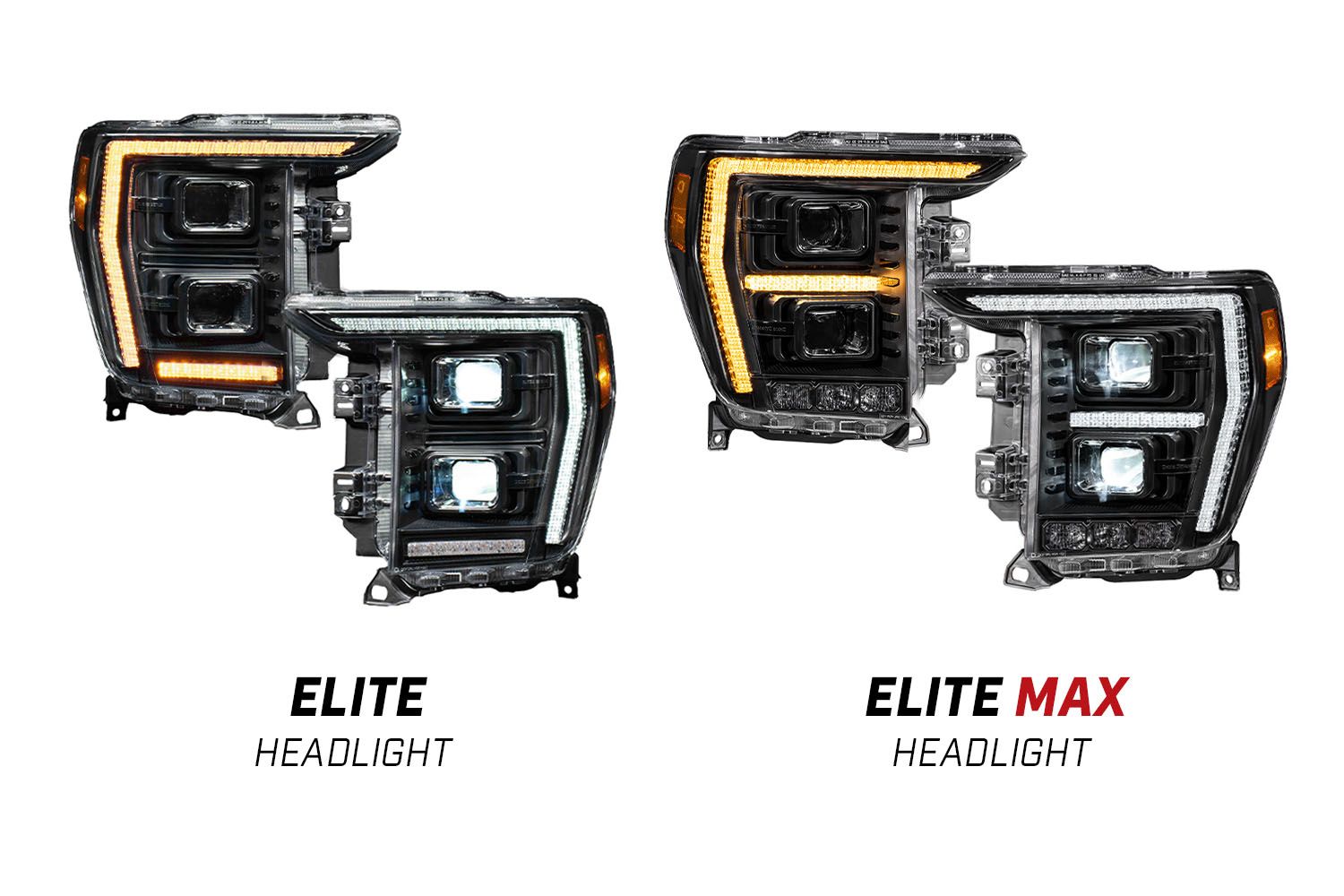

Elite Elite Max

Choose Your OEM Lamp Style

My truck has OEM Projector headlights My truck does not have OEM Projector headlights

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Description

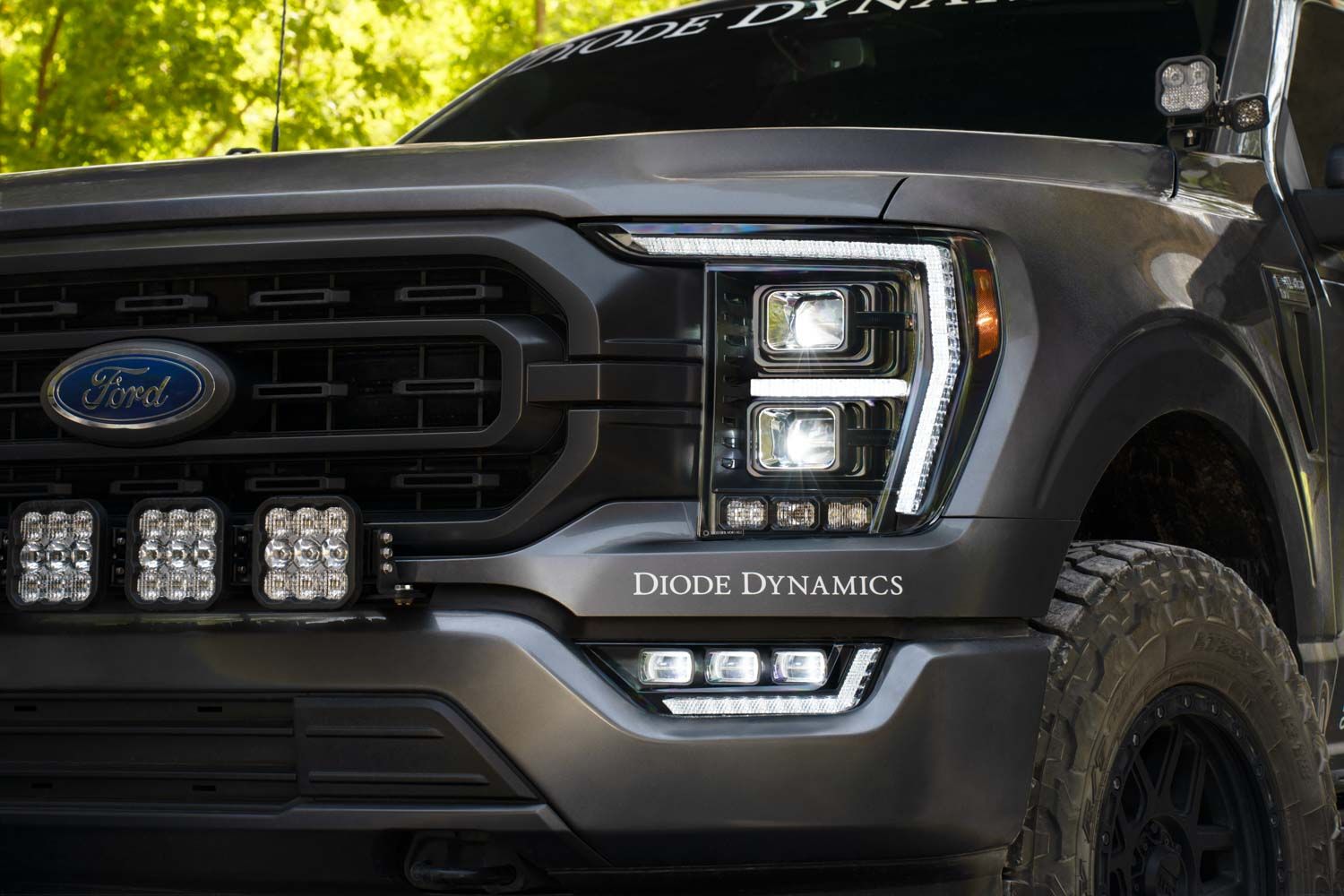

The Diode Dynamics Elite LED Headlights for 2021-2023 Ford F-150 w/ Projector Headlamps offers a performance-driven upgrade for your vehicle's lighting. These headlights were designed for maximum performance and they are the only aftermarket headlights for the F-150 that are 100% engineered and assembled in the USA! Designed with attention to detail, it provides: Dual Bi-LED projectors for maximum output and intensity; Selectable color premium Blade DRL; Modern welcome sequence and sequential turn signal; Integrated off-road lighting and show mode (Elite Max); Engineered and Assembled in USA. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications

Product Currently Selected

Elite LED Headlights for 2021-2023 Ford F-150 w/ Projector Headlamps, DD5178
Elite LED Headlights for 2021-2023 Ford F-150 w/ Non-Projector Headlamps, DD5168
Elite Max LED Headlights for 2021-2023 Ford F-150 w/ Projector Headlamps, DD5177
Elite Max LED Headlights for 2021-2023 Ford F-150 w/ Non-Projector Headlamps, DD5167

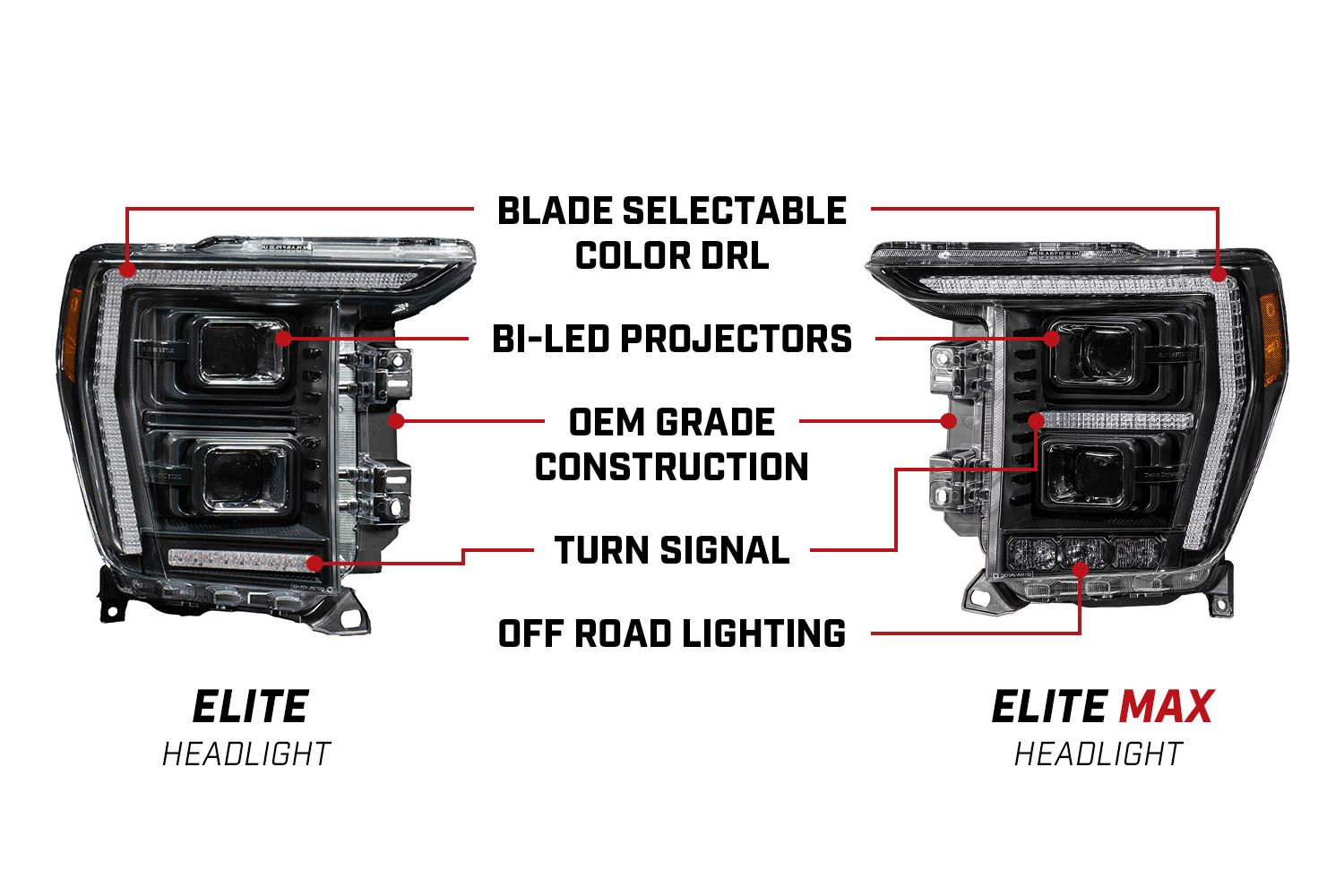

Features and Benefits

Dual Bi-LED projectors for maximum output and intensity

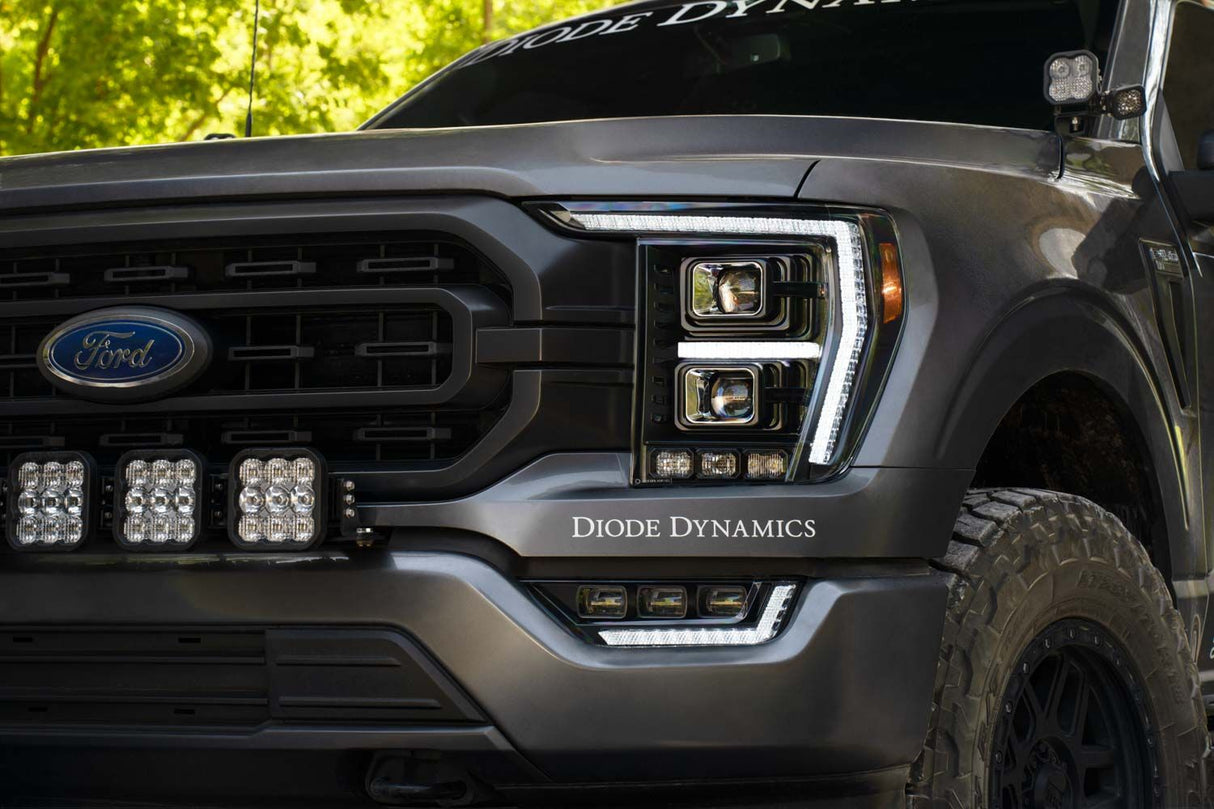

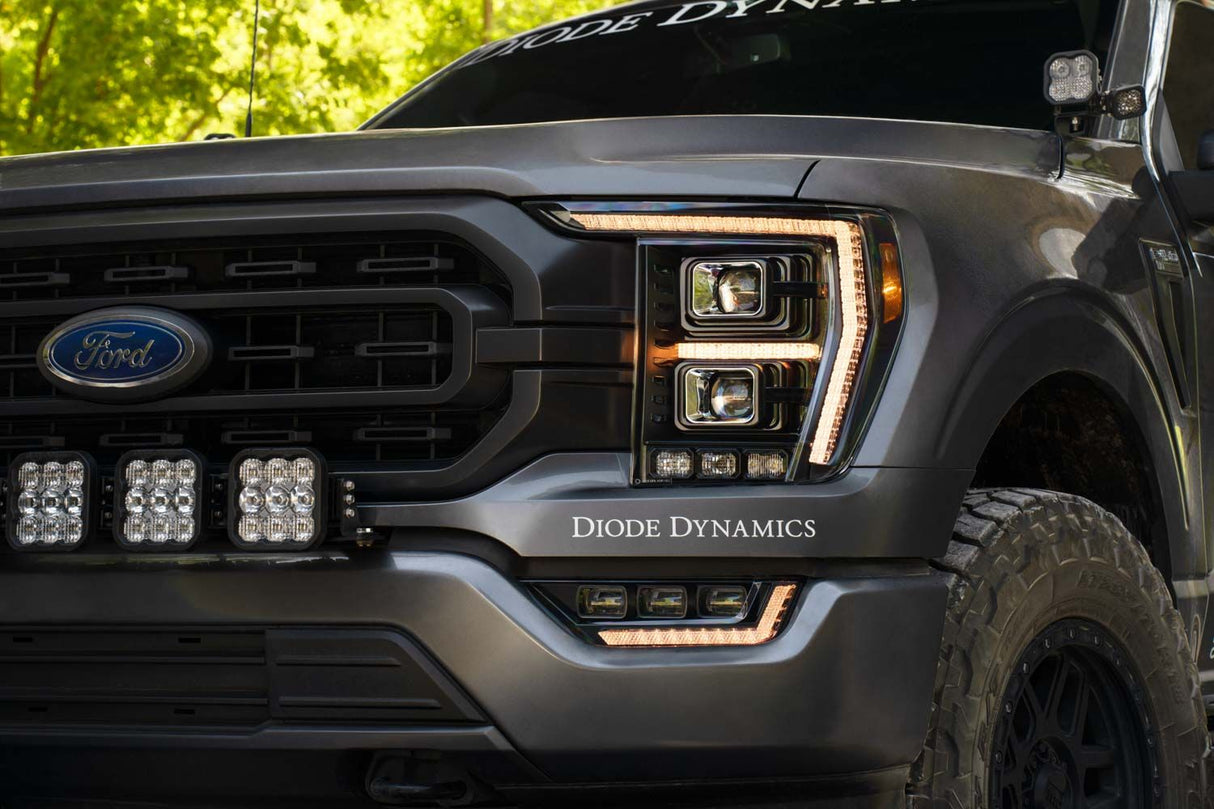

Selectable color premium Blade DRL
Modern welcome sequence and sequential turn signal

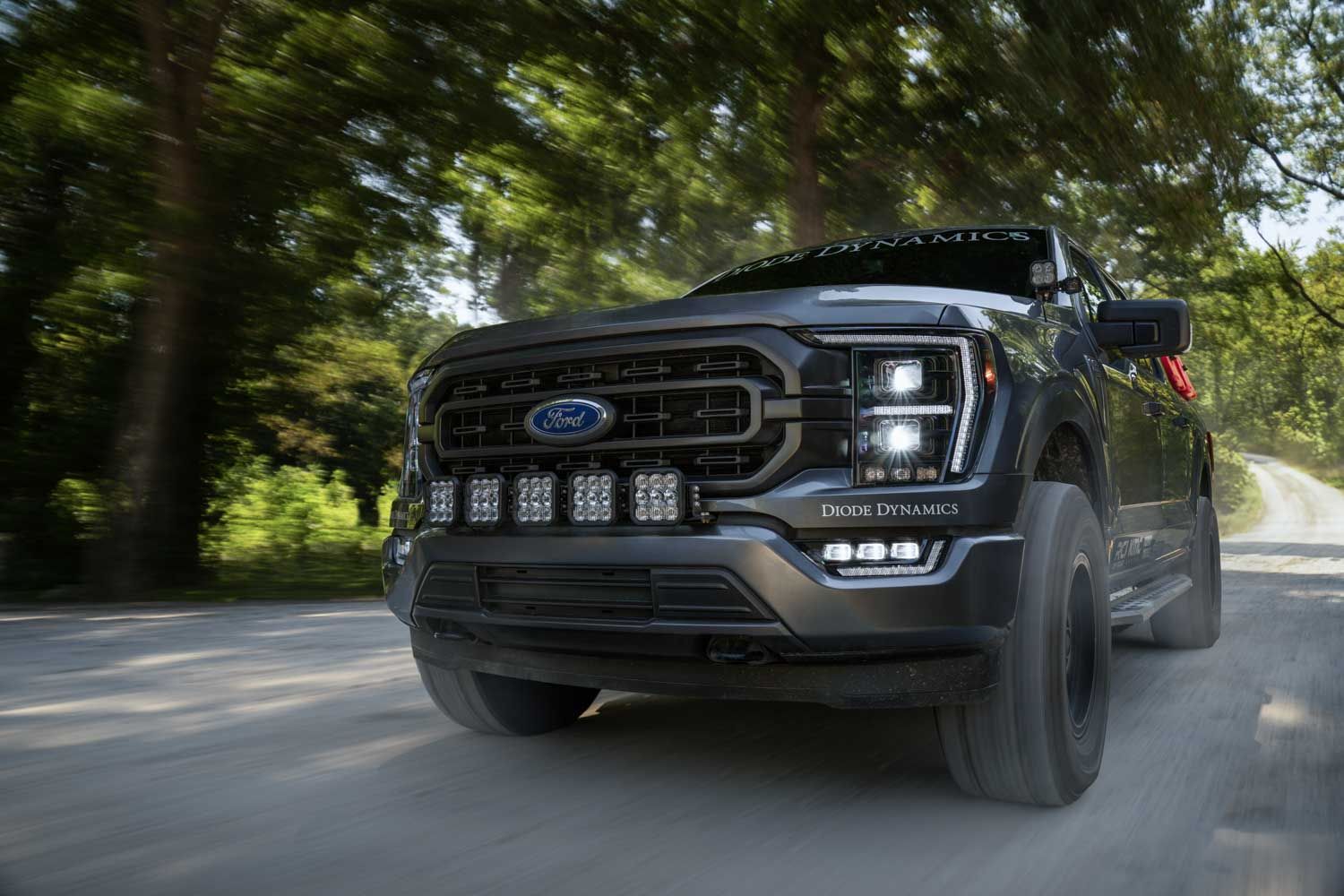

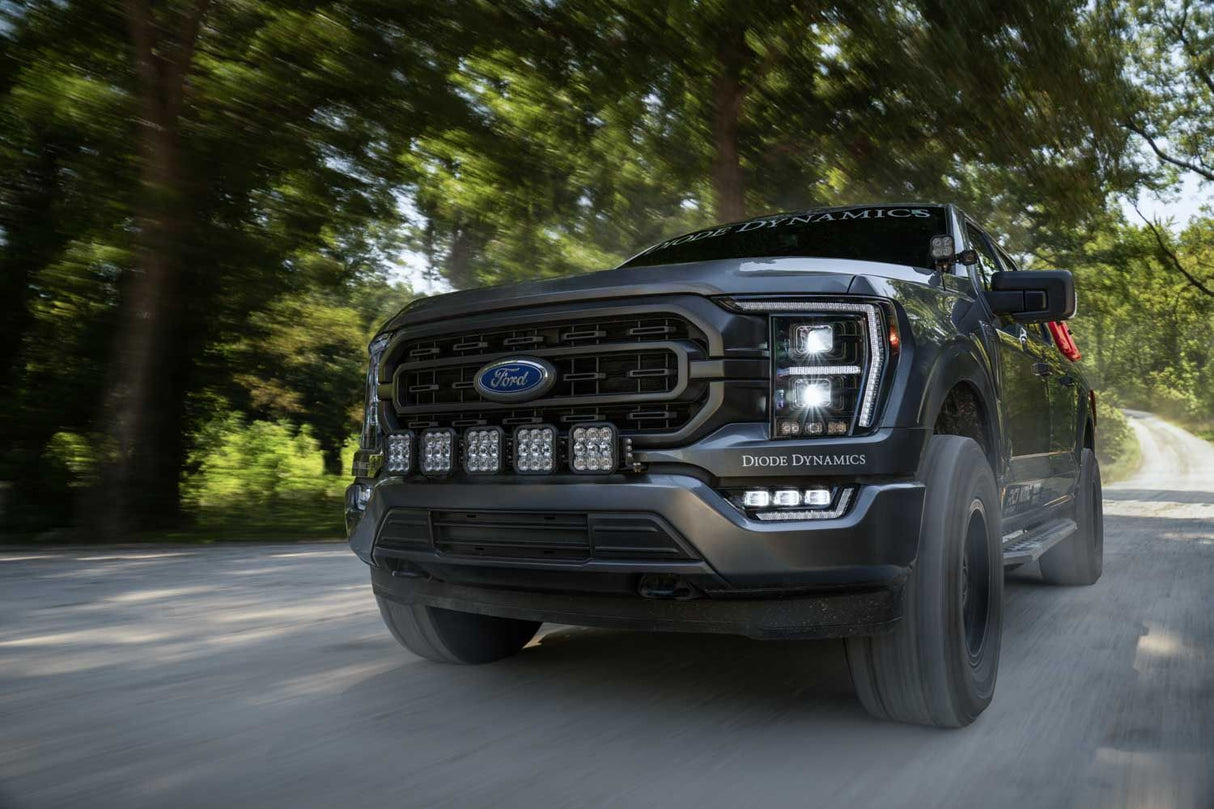

Integrated off-road lighting and show mode (Elite Max)
Engineered and Assembled in USA
Dual Bi-LED projectors for maximum output and intensity
Selectable color premium Blade DRL
Modern welcome sequence and sequential turn signal
Integrated off-road lighting and show mode (Elite Max)
Engineered and Assembled in USA
Dual Bi-LED projectors for maximum output and intensity
Selectable color premium Blade DRL
Modern welcome sequence and sequential turn signal
Integrated off-road lighting and show mode (Elite Max)
Engineered and Assembled in USA
Dual Bi-LED projectors for maximum output and intensity
Selectable color premium Blade DRL
Modern welcome sequence and sequential turn signal
Integrated off-road lighting and show mode (Elite Max)
Engineered and Assembled in USA

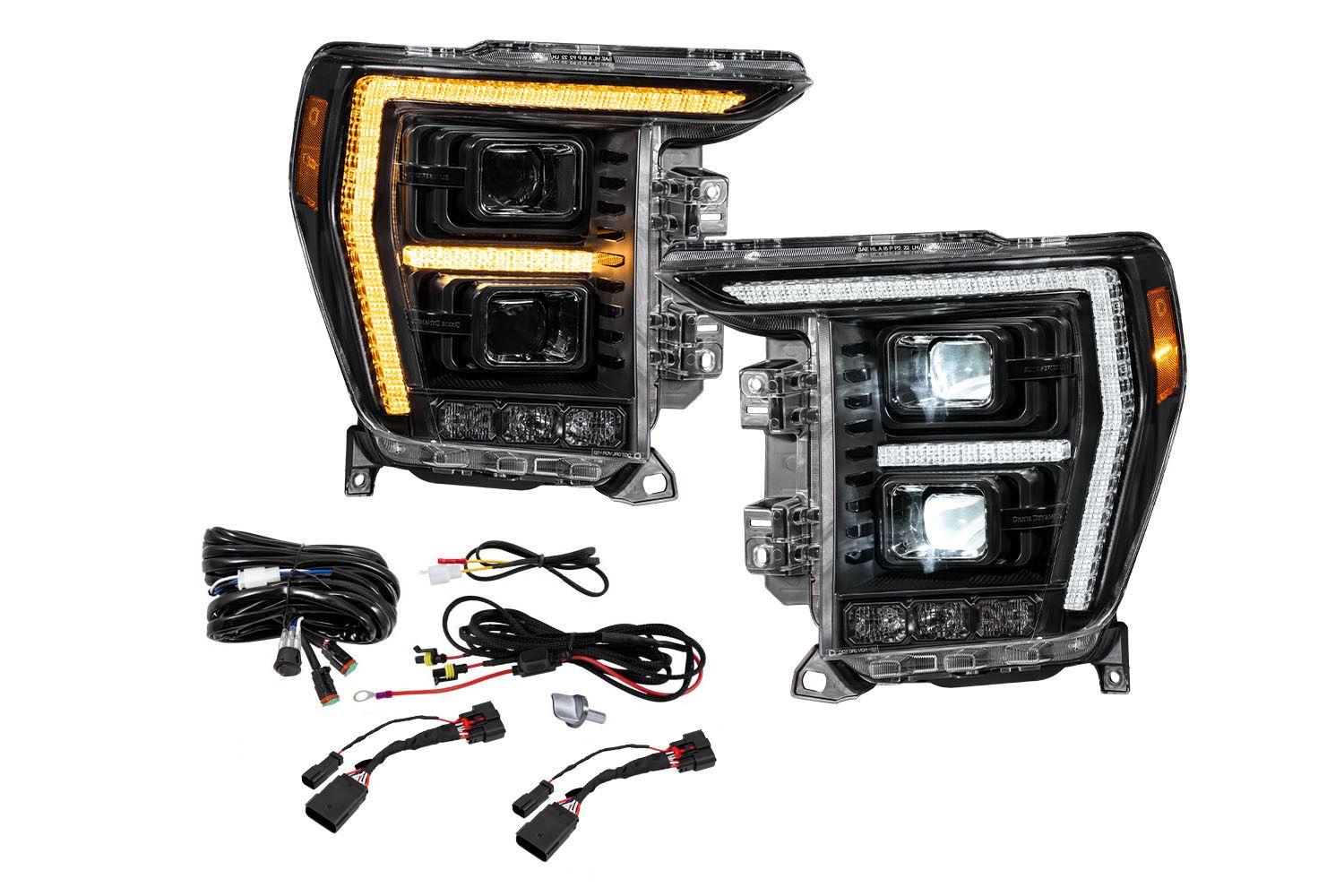

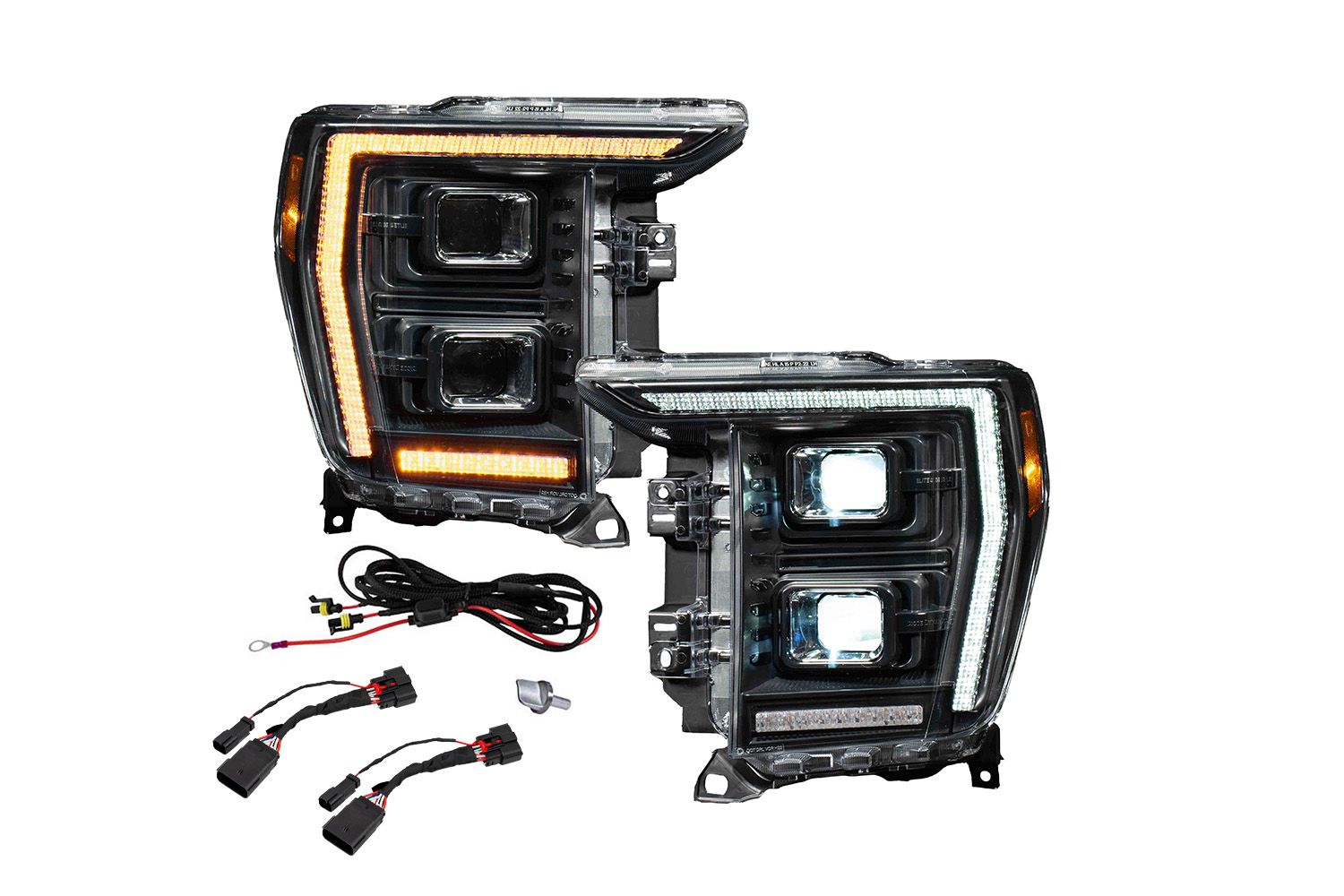

Whats Included

Included in the box:
- Two (2) Ford F-150 Elite Headlamps
- Two (2) Plug-and-Play Harnesses
- Two (2) Molex Sealing Plugs
- One (1) Adjuster Tool
- Installation Guide
Included in the box:
- Two (2) Ford F-150 Elite Headlamps
- Two (2) Plug-and-Play Harnesses
- Two (2) Molex Sealing Plugs
- One (1) Adjuster Tool
- Installation Guide
Included in the box:
- Two (2) Ford F-150 Elite Max Headlamps
- Two (2) Plug-and-Play Harnesses
- Two (2) Molex Sealing Plugs
- One (1) Adjuster Tool
- Installation Guide
Included in the box:
- Two (2) Ford F-150 Elite Max Headlamps
- Two (2) Plug-and-Play Harnesses
- Two (2) Molex Sealing Plugs
- One (1) Adjuster Tool
- Installation Guide
Tech Specs

Adaptive Headlight: No
Adaptive High Beam: No
Adjusting Screw Included: Yes
Amperage Rating: 3.986
Ballast Included: No
Beam Type: High Beam Low Beam
Bezel Color: Black
Bulb Finish: Clear
Bulb Technology: LED
Bulbs Included: Yes
Color Temp: 6000K
DOT Approved: Yes
Emergency Warning Lights Included: No
Grade Type: Regular
Headlight Type: Assembly
Housing Color: Black
Input Power (watts): Low Beam: 30 High Beam: 43 Offroad: 61
Intensity (lux): Low Beam: 89100 High Beam: 106200 Offroad: 102150
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Low Beam Bulb Technology: LED
Measured Output (lumens): Low Beam: 665 High Beam: 1210 Offroad: 1720
Mounting Hardware Included: No
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Turn Signal Included: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Adaptive Headlight: No
Adaptive High Beam: No
Adjusting Screw Included: Yes
Amperage Rating: 3.986
Ballast Included: No
Beam Type: High Beam Low Beam
Bezel Color: Black
Bulb Finish: Clear
Bulb Technology: LED
Bulbs Included: Yes
Color Temp: 6000K
DOT Approved: Yes
Emergency Warning Lights Included: No
Grade Type: Regular
Headlight Type: Assembly
Housing Color: Black
Input Power (watts): Low Beam: 30 High Beam: 43 Offroad: 61
Intensity (lux): Low Beam: 89100 High Beam: 106200 Offroad: 102150
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Low Beam Bulb Technology: LED
Measured Output (lumens): Low Beam: 665 High Beam: 1210 Offroad: 1720
Mounting Hardware Included: No
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Turn Signal Included: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Adaptive Headlight: No
Adaptive High Beam: No
Adjusting Screw Included: Yes
Amperage Rating: 3.986
Ballast Included: No
Beam Type: High Beam Low Beam
Bezel Color: Black
Bulb Finish: Clear
Bulb Technology: LED
Bulbs Included: Yes
Color Temp: 6000K
DOT Approved: Yes
Emergency Warning Lights Included: No
Grade Type: Regular
Headlight Type: Assembly
Housing Color: Black
Input Power (watts): Low Beam: 30 High Beam: 43 Offroad: 61
Intensity (lux): Low Beam: 89100 High Beam: 106200 Offroad: 102150
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Low Beam Bulb Technology: LED
Measured Output (lumens): Low Beam: 665 High Beam: 1210 Offroad: 1720
Mounting Hardware Included: No
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Turn Signal Included: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Adaptive Headlight: No
Adaptive High Beam: No
Adjusting Screw Included: Yes
Amperage Rating: 3.986
Ballast Included: No
Beam Type: High Beam Low Beam
Bezel Color: Black
Bulb Finish: Clear
Bulb Technology: LED
Bulbs Included: Yes
Color Temp: 6000K
DOT Approved: Yes
Emergency Warning Lights Included: No
Grade Type: Regular
Headlight Type: Assembly
Housing Color: Black
Input Power (watts): Low Beam: 30 High Beam: 43 Offroad: 61
Intensity (lux): Low Beam: 89100 High Beam: 106200 Offroad: 102150
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Low Beam Bulb Technology: LED
Measured Output (lumens): Low Beam: 665 High Beam: 1210 Offroad: 1720
Mounting Hardware Included: No
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Turn Signal Included: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
